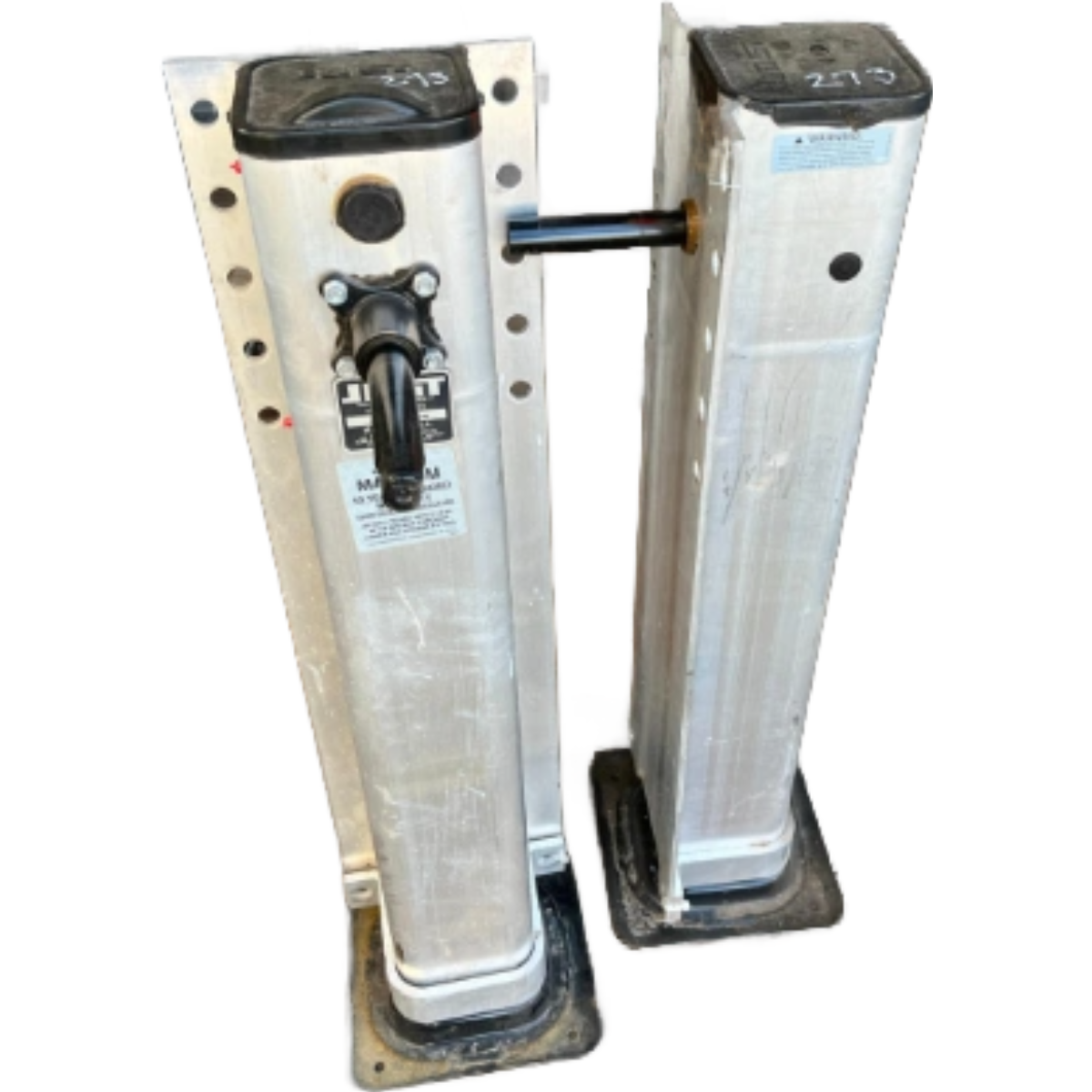

Jost 19 Inch Travel AX 150 Landing Gear Set-Aluminum Outer/Steel Inner

PN: 526-35028-25

Set Includes-gear leg, slave leg, center shaft, and crank handle.

Key Features and Specifications

• Travel Size: 19 inches, suitable for a wide range of trailer applications needing this travel length.
• Outside Mounted
• Low Profile Foot: 10" x 10" foot designed to provide more ground clearance and reduce wear, typically non-removable to enhance durability and stability.
• Material and Build: Aluminum leg sets with an internal gearbox containing austempered ductile iron gears that prevent wear and shaft misalignment, substantially increasing the landing gear lifespan and reliability.
• Load Capacity: Rated for a lift capacity around 55,000 LBS with a maximum static load rating of approximately 160,000 LBS when properly braced on the trailer. This provides both strength and safety for heavy commercial trailer usage.
• Gearbox and Crank: Features a two-speed gearbox with gear ratios of low gear (32 turns = 1" travel) and high gear (3.5 turns = 1" travel). The double "D" crank shaft allows efficient torque transfer without stressing connecting bolts.
• Durability: Designed to resist moisture intrusion and exposure damage with sealed coverings and bushings. The cushion foot is wear-resistant and built to last significantly longer than standard options.

-Shipping will be LTL freight. Shipping to home/residential address (anything non business) may incur larger shipping charges. If shipping to home/residential address, please be sure to select shipping with liftgate service if needed.
