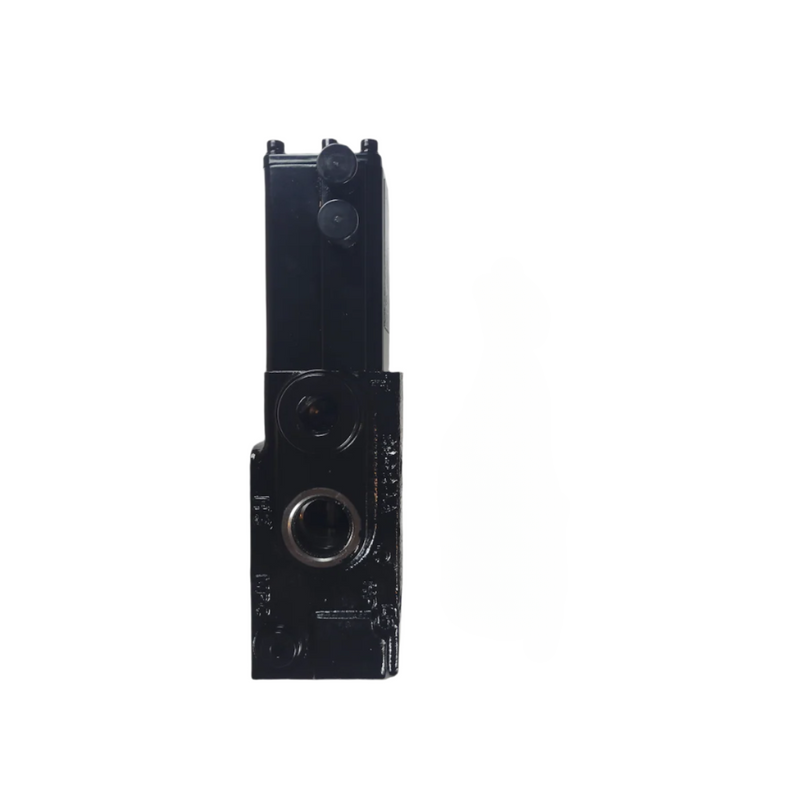

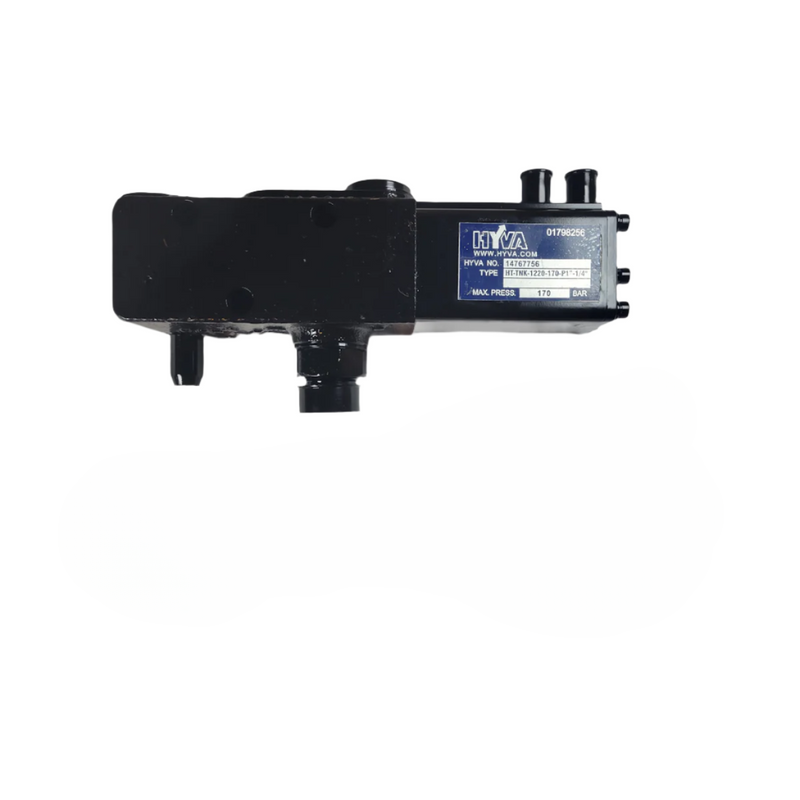

Hyva Tipping Valve HT VLV-TNK-1220-170-P1"-1/4"

Hyva Tipping Valve HT VLV-TNK-1220-170-P1"-1/4"

1 P Pump Connection

2A T1 Tank Connection

2B T2 Alternative Tank Connection

3 C Cylinder Connection

4 Pneumatic Connection (Tip) 1/4"

5 Pneumatic Connection (Lower) 1/4"

6 MPC Measure Pressure Cylinder (Pressure Gauge Point)

7 Pressure Relief Cartridge

8 Adjustment Screw (int.hex.5) (To Adjust the lowering speed)
