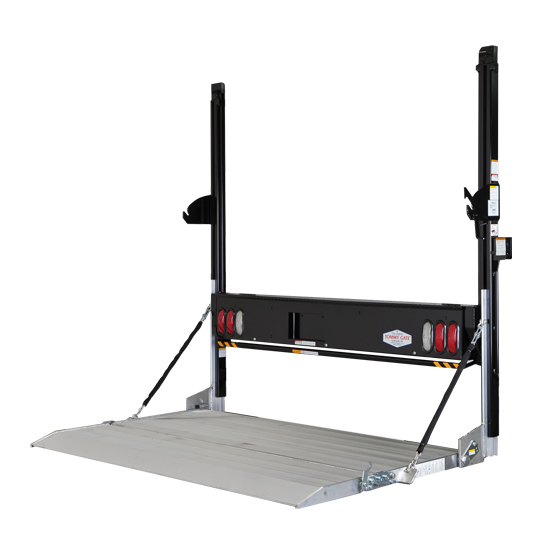

Tommy Gate Liftgate-Model: 89-20 RF 45-6

Tommy Gate Liftgate-Model: 89-20 RF 45-6, For Flatbed and Van, 2,000 LB Capacity

Platform Detail

• Aluminum
• Two-piece Extruded Aluminum w/ 45" loading depth (15" flipper) + 6" taper (30" base height)

Drive System: Roller Chain and Hydraulic Cylinder

Hydraulic System: Enclosed unit- all critical components are factory enclosed in main frame of gate providing protection from elements and damage. Easy access for servicing. Pressure relief valve: Prevents operator from overloading the platform. Cylinder mounted flow control valves: prevents uncontrolled descent of platform.

Electrical System: Control Unit-Moisture resistant toggle switch/deactivates 90 seconds after last operation(helps prevent unauthorized use) / timer reset and on-off button permanently and conventionally located on control unit and positioned under logo and bulls eye respectively. Circuit breaker: 150 Amp continuous, 3000 Amp interrupt, 30 VDC, watertight, manual reset. Mounted in-line with 4 AWG positive battery cable, protects vehicle in the event of an electrical short. Power/Ground Cable: Factory supplied 4 AWG ground cable molded with power cable. Providing a direct connection from liftgate to truck battery.

Drive Train: Roller Chain- ANSI #50
